keymap.c

• header


  #include QMK_KEYBOARD_H


  /* THIS FILE WAS GENERATED!
   *
   *
   * This file was generated by emacs org-mode tangle function.
   * see https://yasushisakai.com/qmk.html for details
   */


  /* tap dance codes */
  enum {
      CT_CLN,
      CT_Q_ESC,
      CT_Z_TAB,
      CT_R_LPRN,
      CT_T_RPRN,
      CT_I_LBRC,
      CT_O_RBRC,
      CT_P_MINUS,
      CT_SCLN_EQ,
      CT_SLSH_QUOT,
      CT_MEH_TO1,
      CT_MEH_TO2
  };



• meta programming keymap



  TRANS = 'KC_TRNS'

  def kc(key):
      return f'KC_{key.upper()}'

  def render_layers(layers):
      output = ""
      meat = ",\n".join([render_layer(i, layer) for i, layer in enumerate(layers)])
      return meat

  def render_layer(i, layer):
      output = f'  [{i}] = LAYOUT_split_3x5_2('
      meat = ", ".join(layer)
      output += meat;
      output += ")"
      return output

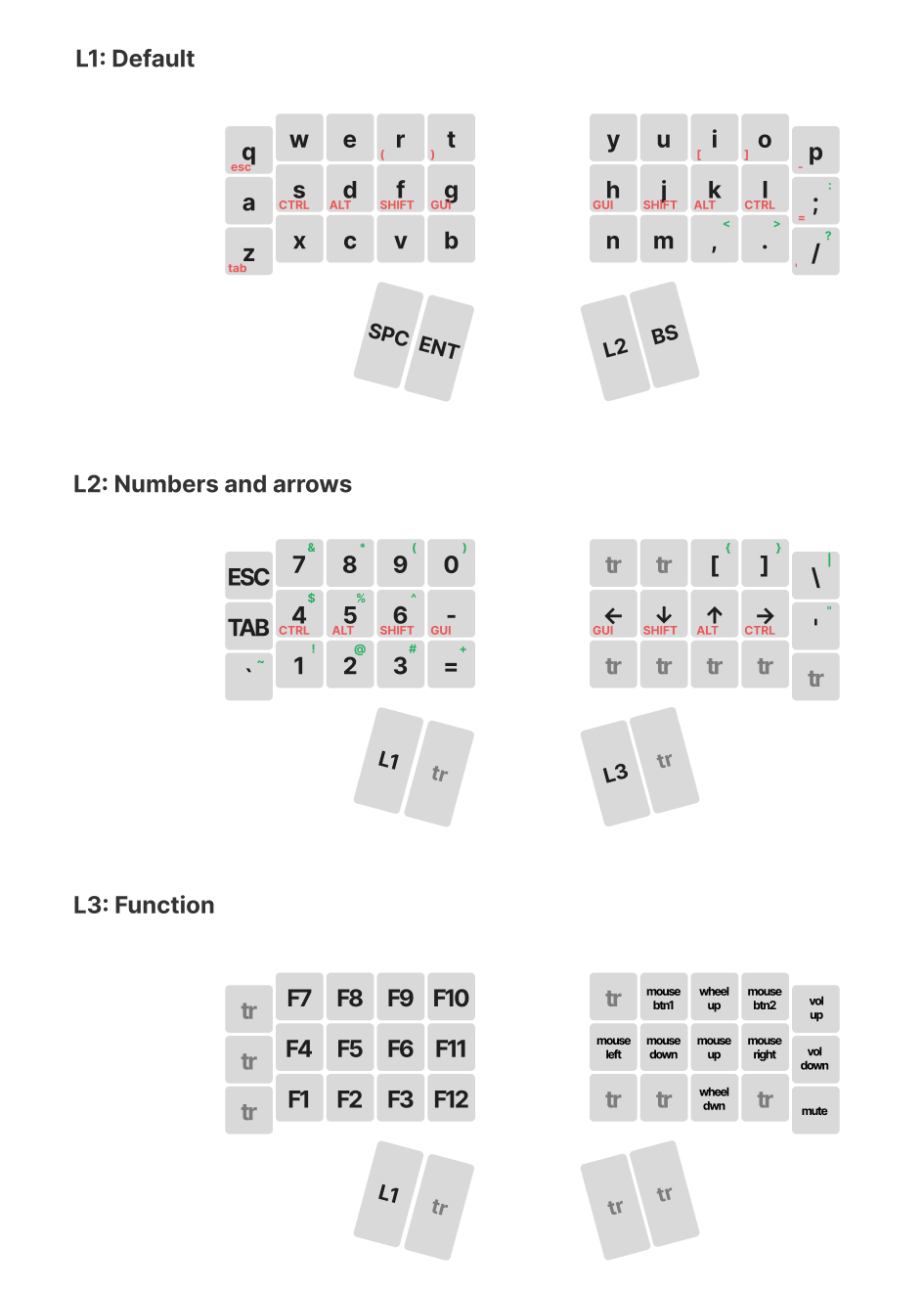

  base = [
  'TD(CT_Q_ESC)', kc('w'),       kc('e'),       'TD(CT_R_LPRN)', 'TD(CT_T_RPRN)',       kc('y'),        kc('u'),        'TD(CT_I_LBRC)', 'TD(CT_O_RBRC)', 'TD(CT_P_MINUS)',
  kc('a'),        'CTL_T(KC_S)', 'ALT_T(KC_D)', 'SFT_T(KC_F)',   'GUI_T(KC_G)',         'RGUI_T(KC_H)', 'RSFT_T(KC_J)', 'ALT_T(KC_K)',   'RCTL_T(KC_L)',  'TD(CT_SCLN_EQ)',
  'TD(CT_Z_TAB)', kc('x'),       kc('c'),       kc('v'),         kc('b'),               kc('n'),        kc('m'),        kc('comma'),     kc('dot'),       'TD(CT_SLSH_QUOT)',
  kc('spc'), kc('ent'), 'CT_MEH_TO1', kc('bspc')
  ]

  numbers = [
  kc('esc'), kc('7'),       kc('8'),       kc('9'),       kc('0'),                      TRANS,             TRANS,             kc('lbrc'),     kc('rbrc'),         kc('bsls'),
  kc('tab'), 'CTL_T(KC_4)', 'ALT_T(KC_5)', 'SFT_T(KC_6)', 'GUI_T(KC_MINS)',             'RGUI_T(KC_LEFT)', 'RSFT_T(KC_DOWN)', 'ALT_T(KC_UP)', 'RCTL_T(KC_RIGHT)', kc('quot'),
  kc('grv'), kc('1'),       kc('2'),       kc('3'),       kc('eql'),                    TRANS,             TRANS,             kc('lbrc'),     kc('rbrc'),         kc('slsh'),
  'TO(0)', TRANS, 'CT_MEH_TO2', TRANS
  ]

  functions = [
  TRANS, kc('f7'), kc('f8'), kc('f9'), kc('f10'),     TRANS,      kc('btn1'), kc('wh_d'), kc('btn2'), kc('volu'),
  TRANS, kc('f4'), kc('f5'), kc('f6'), kc('f11'),     kc('ms_l'), kc('ms_d'), kc('ms_u'), kc('ms_r'), kc('mute'),
  TRANS, kc('f1'), kc('f2'), kc('f3'), kc('f12'),     TRANS,      TRANS,      kc('wh_u'), TRANS,      kc('vold'),
  'TO(0)', TRANS, TRANS, TRANS
  ]

  layers = [base, numbers, functions];

  layer_part = '#+begin_src c :tangle /Users/yasushi/qmk_firmware/keyboards/ferris/keymaps/yasushisakai/keymap.c\n'
  layer_part += 'const uint16_t PROGMEM keymaps[][MATRIX_ROWS][MATRIX_COLS] = {\n'
  layer_part += render_layers(layers)
  layer_part += '\n};' # the last bracket to close the root object
  return layer_part


  const uint16_t PROGMEM keymaps[][MATRIX_ROWS][MATRIX_COLS] = {
    [0] = LAYOUT_split_3x5_2(TD(CT_Q_ESC), KC_W, KC_E, TD(CT_R_LPRN), TD(CT_T_RPRN), KC_Y, KC_U, TD(CT_I_LBRC), TD(CT_O_RBRC), TD(CT_P_MINUS), KC_A, CTL_T(KC_S), ALT_T(KC_D), SFT_T(KC_F), GUI_T(KC_G), RGUI_T(KC_H), RSFT_T(KC_J), ALT_T(KC_K), RCTL_T(KC_L), TD(CT_SCLN_EQ), TD(CT_Z_TAB), KC_X, KC_C, KC_V, KC_B, KC_N, KC_M, KC_COMMA, KC_DOT, TD(CT_SLSH_QUOT), KC_SPC, KC_ENT, TO(1), KC_BSPC),
    [1] = LAYOUT_split_3x5_2(KC_ESC, KC_7, KC_8, KC_9, KC_0, KC_TRNS, KC_TRNS, KC_LBRC, KC_RBRC, KC_BSLS, KC_TAB, CTL_T(KC_4), ALT_T(KC_5), SFT_T(KC_6), GUI_T(KC_MINS), RGUI_T(KC_LEFT), RSFT_T(KC_DOWN), ALT_T(KC_UP), RCTL_T(KC_RIGHT), KC_QUOT, KC_GRV, KC_1, KC_2, KC_3, KC_EQL, KC_TRNS, KC_TRNS, KC_LBRC, KC_RBRC, KC_SLSH, TO(0), KC_TRNS, TO(2), KC_TRNS),
    [2] = LAYOUT_split_3x5_2(KC_TRNS, KC_F7, KC_F8, KC_F9, KC_F10, KC_TRNS, KC_BTN1, KC_WH_D, KC_BTN2, KC_VOLU, KC_TRNS, KC_F4, KC_F5, KC_F6, KC_F11, KC_MS_L, KC_MS_D, KC_MS_U, KC_MS_R, KC_VOLD, KC_TRNS, KC_F1, KC_F2, KC_F3, KC_F12, KC_TRNS, KC_TRNS, KC_WH_U, KC_TRNS, KC_MUTE, TO(0), KC_TRNS, KC_TRNS, KC_TRNS)
  };


• footer (tap hold)


  /quantum フォルダの中にほとんど入ってたけど、必要そうなものを抜粋。

  /* tap_dance_action_t */
  typedef struct {
      tap_dance_state_t state;
      struct {
          tap_dance_user_fn_t on_each_tap;
          tap_dance_user_fn_t on_dance_finished;
          tap_dance_user_fn_t on_reset;
      } fn;
      void *user_data;
  } tap_dance_action_t;


  typedef struct {
      uint16_t interrupting_keycode;
      uint8_t  count;
      uint8_t  weak_mods;
  #    ifndef NO_ACTION_ONESHOT
      uint8_t oneshot_mods;
  #    endif
      bool pressed : 1;
      bool finished : 1;
      bool interrupted : 1;
  } tap_dance_state_t;

  /* Key event container for recording */
  typedef struct {
      keyevent_t event;
  #ifndef NO_ACTION_TAPPING
      tap_t tap;
  #endif
  #ifdef COMBO_ENABLE
      uint16_t keycode;
  #endif
  } keyrecord_t;

  /* key event */
  typedef struct {
      keypos_t key;
      bool     pressed;
      uint16_t time;
  } keyevent_t;

  #    define ACTION_TAP_DANCE_FN_ADVANCED(user_fn_on_each_tap, user_fn_on_dance_finished, user_fn_on_dance_reset) \
          { .fn = {user_fn_on_each_tap, user_fn_on_dance_finished, user_fn_on_dance_reset}, .user_data = NULL, }


  #if defined(ENCODER_ENABLE) && defined(ENCODER_MAP_ENABLE)
  const uint16_t PROGMEM encoder_map[][NUM_ENCODERS][2] = {

  };
  #endif // defined(ENCODER_ENABLE) && defined(ENCODER_MAP_ENABLE)

  ////////// TAP_HOLD

  typedef struct {
      uint16_t tap;
      uint16_t hold;
      uint16_t held;
  } tap_dance_tap_hold_t;

  bool process_record_user(uint16_t keycode, keyrecord_t *record) {
      tap_dance_action_t *action;

      switch (keycode) {
          case TD(CT_CLN):  // list all tap dance keycodes with tap-hold configurations
          case TD(CT_Q_ESC):
          case TD(CT_Z_TAB):
          case TD(CT_R_LPRN):
          case TD(CT_T_RPRN):
          case TD(CT_I_LBRC):
          case TD(CT_O_RBRC):
          case TD(CT_SLSH_QUOT):
          case TD(CT_P_MINUS):
          case TD(CT_SCLN_EQ):
              action = &tap_dance_actions[TD_INDEX(keycode)];
              if (!record->event.pressed && action->state.count && !action->state.finished) {
                  tap_dance_tap_hold_t *tap_hold = (tap_dance_tap_hold_t *)action->user_data;
                  tap_code16(tap_hold->tap);
              }
      }
      return true;
  }

  /// The second function, on_dance_finished_fn(), is called when the tap dance is interrupted or ends because TAPPING_TERM milliseconds have passed since the last tap.
  void tap_dance_tap_hold_finished(tap_dance_state_t *state, void *user_data) {
      tap_dance_tap_hold_t *tap_hold = (tap_dance_tap_hold_t *)user_data;

      if (state->pressed) {
          if (state->count == 1
  #ifndef PERMISSIVE_HOLD
              && !state->interrupted
  #endif
          ) {
              register_code16(tap_hold->hold);
              tap_hold->held = tap_hold->hold;
          } else {
              register_code16(tap_hold->tap);
              tap_hold->held = tap_hold->tap;
          }
      }
  }

  // After on_dance_finished_fn() was called or would have been called, but no sooner than when the tap dance key is released, on_dance_reset_fn() is called. It is possible to end a tap dance immediately, skipping on_dance_finished_fn(), but not on_dance_reset_fn, by calling reset_tap_dance(state).
  void tap_dance_tap_hold_reset(tap_dance_state_t *state, void *user_data) {
      tap_dance_tap_hold_t *tap_hold = (tap_dance_tap_hold_t *)user_data;

      if (tap_hold->held) {
          unregister_code16(tap_hold->held);
          tap_hold->held = 0;
      }
  }

  #define ACTION_TAP_DANCE_TAP_HOLD(tap, hold) \
      { .fn = {NULL, tap_dance_tap_hold_finished, tap_dance_tap_hold_reset}, .user_data = (void *)&((tap_dance_tap_hold_t){tap, hold, 0}), }

  #define ACTION_TAP_TOGGLE_MEH_HOLD(tap, hold) \
      { .fn = {NULL, tap_dance_tap_hold_finished, tap_dance_tap_hold_reset}, .user_data = (void *)&((tap_dance_tap_hold_t){tap, hold, 0}), }


  tap_dance_action_t tap_dance_actions[] = {
      [CT_CLN] = ACTION_TAP_DANCE_TAP_HOLD(KC_COLN, KC_SCLN),
      [CT_Q_ESC] = ACTION_TAP_DANCE_TAP_HOLD(KC_Q, KC_ESC),
      [CT_Z_TAB] = ACTION_TAP_DANCE_TAP_HOLD(KC_Z, KC_TAB),
      [CT_R_LPRN] = ACTION_TAP_DANCE_TAP_HOLD(KC_R, KC_LPRN),
      [CT_T_RPRN] = ACTION_TAP_DANCE_TAP_HOLD(KC_T, KC_RPRN),
      [CT_I_LBRC] = ACTION_TAP_DANCE_TAP_HOLD(KC_I, KC_LBRC),
      [CT_O_RBRC] = ACTION_TAP_DANCE_TAP_HOLD(KC_O, KC_RBRC),
      [CT_P_MINUS] = ACTION_TAP_DANCE_TAP_HOLD(KC_P, KC_MINS),
      [CT_SCLN_EQ] = ACTION_TAP_DANCE_TAP_HOLD(KC_SCLN, KC_EQL),
      [CT_SLSH_QUOT] = ACTION_TAP_DANCE_TAP_HOLD(KC_SLSH, KC_QUOT),
      [CT_MEH_TO1] = ACTION_TAP_DANCE_TAP_HOLD(KC_MEH, TO(1)),
      [CT_MEH_TO2] = ACTION_TAP_DANCE_TAP_HOLD(KC_MEH, TO(2)),
  };
